When shops begin performing ADAS calibration in-house, most of the focus naturally goes to the visible equipment. Calibration frames, targets, scan tools, and proper bay setup all matter because they allow technicians to position targets correctly and follow manufacturer procedures.
However, experienced technicians know that a few smaller operational details can also help procedures run more smoothly.
One of those details is maintaining stable battery voltage during diagnostics and programming work.
During many diagnostic procedures, ECU programming events, and some ADAS calibrations, the vehicle must remain powered while the engine stays off. In this situation, the vehicle electronics draw power directly from the battery.
Most of the time this works without issue. But during longer procedures, technicians have learned that maintaining stable voltage can help everything run a little more consistently.
A Practical Tip From A Real Calibration Bay

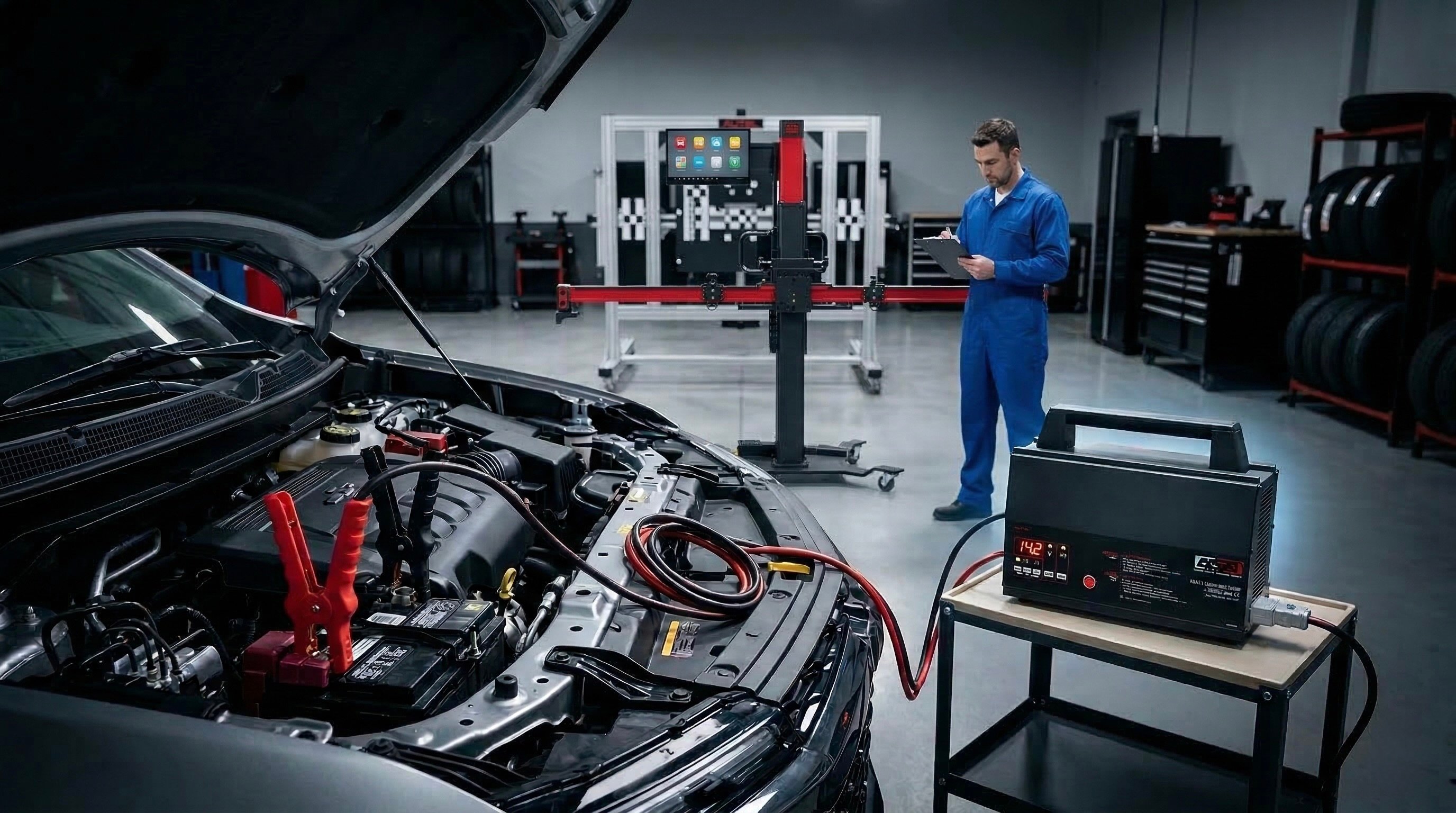

At Applied Automotive Technology, we perform diagnostics, programming, and ADAS calibrations every day. One simple practice we have found helpful is using battery support power supplies during certain procedures.
A battery support power supply is a regulated power unit designed to maintain steady voltage while the vehicle electronics remain active.
These tools help stabilize the vehicle’s electrical system while technicians perform programming, diagnostics, or calibration work.
Many procedures complete without any issue. However, maintaining stable voltage can help reduce small interruptions that occasionally occur during longer diagnostic sessions or programming events. In other words, it is simply a practical step that can help procedures run more consistently.
In this article, we will explain:
- Why modern vehicles draw electrical power during diagnostics
- Why many shops use battery support power supplies during programming and calibration
- How these tools maintain stable voltage
- Why technicians often use them during ECU programming and ADAS calibration
If you are building an ADAS calibration workflow, this is one of those small operational details that can make day-to-day work a little easier.
Why Vehicles Draw Electrical Power During Diagnostics
Modern vehicles contain dozens of electronic control units, often called ECUs. These modules control systems such as cameras, radar sensors, braking systems, steering systems, and other driver-assistance technologies.
When a technician performs diagnostics or calibration procedures, the ignition is typically turned on while the engine remains off. This allows scan tools and manufacturer software to communicate with the vehicle.
During this time, the vehicle may be powering:
- ADAS cameras and radar sensors
- Multiple electronic control units
- The vehicle communication network
- Diagnostic scan tools connected through the OBD port
- Manufacturer diagnostic software
All of these systems draw electrical power from the vehicle battery.
Modern vehicles often have multiple control modules, sensors, and communication networks active at the same time. As noted in FenderBender’s article Why Battery Support is Critical During Vehicle Scans, Programming, and ADAS Calibrations, this increases the electrical load during scanning, programming, and calibration.
For repair shops, the takeaway is simple: maintaining stable battery voltage helps ensure these systems operate consistently throughout the process and reduces the risk of interruptions during critical procedures.
Why Standard Battery Chargers Are Not Ideal for Diagnostic Work
Some technicians consider connecting a traditional battery charger to support the battery during diagnostics.
While chargers are useful for restoring battery charge, they are not designed specifically for diagnostic or programming environments.
Traditional chargers are typically intended for:
- Recharging depleted batteries
- Maintaining batteries during vehicle storage
- Slowly restoring battery capacity
Another difference is electrical stability. Many standard chargers can introduce small fluctuations in electrical output known as AC ripple.
AC ripple means the electrical output is not perfectly smooth. Instead of a steady DC voltage, small waves of alternating current can ride on top of the power supply.
Vehicle electronics operate best with clean, steady DC voltage. For sensitive procedures such as ECU programming or ADAS calibration, technicians generally prefer a more stable power source.
What Battery Support Power Supplies Do
Battery support power supplies are designed specifically for diagnostic and programming environments.
Instead of simply charging the battery, these tools maintain stable voltage while the vehicle electronics remain active.
Many professional units allow technicians to maintain a consistent voltage level during programming procedures. A common setting used during programming is approximately 14.2 volts of steady DC power.
Once connected to the vehicle battery or designated jump points, the unit provides whatever current is required to maintain that voltage as the vehicle’s electrical demand changes.
This helps ensure that:
- Vehicle modules remain powered
- Communication between scan tools and vehicle networks remains stable
- Programming and calibration procedures continue without interruption
The goal is not simply charging the battery.
The goal is maintaining a stable electrical environment while technicians work.
Battery Support Power Supplies Used in Calibration Bays
Some shops use tools such as the Schumacher INC100 Flash Reprogrammer and Power Supply, which is designed for ECU programming environments.
Other facilities use regulated battery equipment such as Fronius battery support units, which are widely used in professional diagnostic settings.
We have also used these units in calibration bays and have found them to be effective in maintaining stable voltage during procedures.
Tools in this category provide stable DC voltage and sufficient current to support the vehicle’s electrical systems during diagnostic and programming work. When calibration procedures require sustained electrical demand, we recommend using battery support equipment like this to help maintain consistent performance.
Why Voltage Support Is Required During ECU Programming
Voltage support becomes especially helpful during ECU programming.
ECU programming is the process of updating or rewriting the software inside a vehicle’s electronic control module. Manufacturers release these updates to improve system performance or correct software issues.
During programming, new software is downloaded and written into the module. The process can take several minutes depending on the vehicle and the update being installed.
Maintaining consistent voltage during this process helps ensure the programming event completes smoothly.
Industry organizations also recommend maintaining stable voltage during programming procedures. The Collision Industry Conference (CIC) advises connecting a battery support power supply during module programming to maintain stable system voltage and help avoid programming interruptions.
Why Stable Voltage Can Also Help During ADAS Calibration
ADAS calibration procedures rely on communication between sensors, control modules, and diagnostic equipment.
During calibration, the vehicle needs to:
- Detect calibration targets
- Confirm sensor alignment
- Exchange information between modules
- Store calibration values inside the system
These steps require consistent communication between multiple vehicle systems.
Providing consistent electrical power during the procedure helps ensure that the calibration routine runs smoothly from start to finish.
A Small Practice That Helps ADAS Work Run More Consistently
ADAS calibration equipment receives most of the attention when shops begin performing calibrations in-house. Calibration frames, targets, and scan tools are essential parts of the process. However, experienced technicians also pay attention to smaller operational details that help procedures run smoothly. One of those details is maintaining stable battery voltage during longer diagnostic or programming procedures.
Battery support power supplies help keep the vehicle’s electrical system steady while technicians work. It is a practical habit that experienced shops often adopt to help diagnostics, programming, and calibration procedures run more consistently.
Now you know one small detail that can make a meaningful difference by helping reduce mis-calibrations, improve workflow efficiency, and simplify troubleshooting. We’ll continue to share practical tips like this to support your calibration journey.
