Most shops exploring ADAS calibration in-house eventually land in the same place: comparing Hunter and Autel. It’s a logical comparison. Both systems are capable of performing accurate calibrations, and both are widely used across collision centers, dealerships, and glass operations.
At Applied Automotive Technology, we help shops bring ADAS calibration in-house, so this is a comparison we discuss regularly.
Before getting into equipment, workflow, software, or cost, it is important to be transparent about our perspective. We are an authorized reseller of Autel ADAS calibration equipment, and that naturally influences our point of view.
At the same time, our goal is straightforward: to help shops understand the practical differences between the two systems so they can make an informed decision based on how their operation actually works.
Need help finding the right ADAS frame? Use our free ADAS Equipment Advisor.

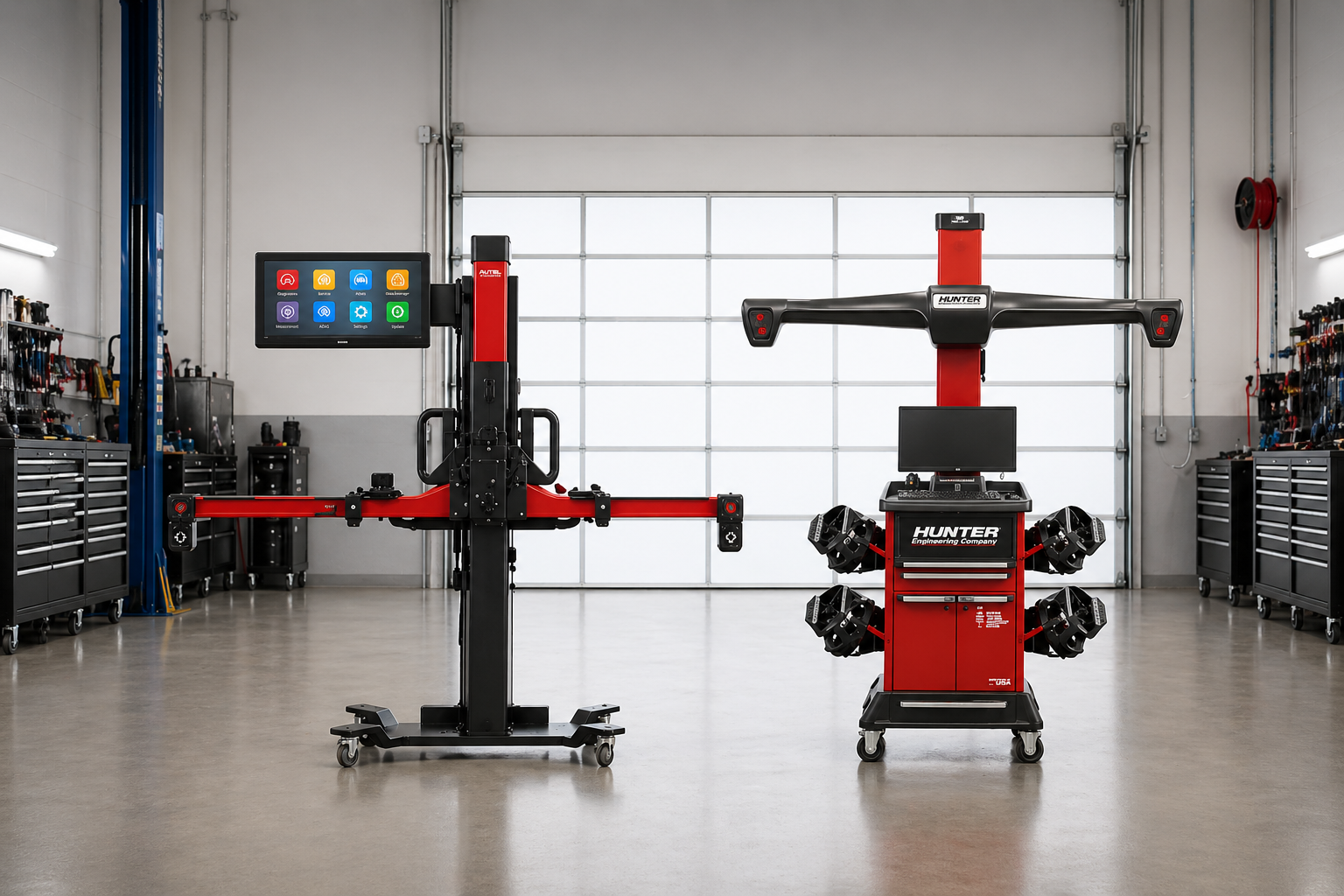

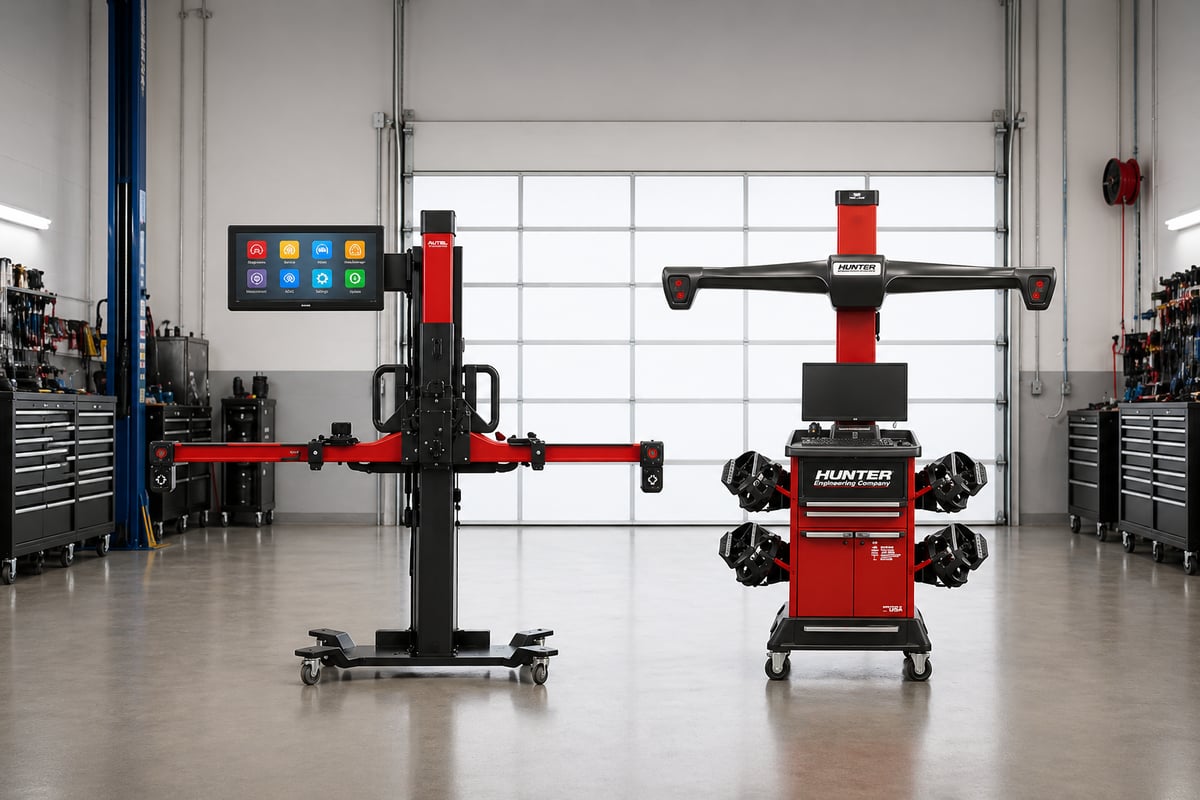

Hunter and Autel: Two Capable Systems, Two Different Foundations
At a high level, Hunter and Autel are solving the same problem.
Both support static calibration procedures, scan workflows, OEM-aligned processes, and the documentation shops need for insurers, repair records, and liability protection.
From a distance, the systems can appear similar. The difference is how they were developed and how that foundation affects the technician’s day-to-day experience.
A useful way to think about it is this:
Hunter extended alignment into ADAS calibration, while Autel extended diagnostics into ADAS calibration.
That difference in origin affects workflow, equipment integration, software delivery, mobility, space requirements, and how technicians interact with the system.
Let’s Address It Up Front: Hunter Will Cost You More
For many shop owners, the evaluation begins with investment.
A calibration and alignment Autel setup may fall in the $60,000 to $75,000 range, while a comparable Hunter system may approach or exceed $100,000 to $120,000 depending on configuration. That difference is significant, but the initial purchase price is only one part of the decision. Shop owners also need to consider:
- Equipment mobility
- Required floor space
- Additional target costs
- Software updates
- Technician workflow
- Support
- Vehicle coverage
- The number of separate components involved
The most important questions are not simply, “Which system costs less?” or “Which brand is better?”
The better questions are:
- Can the shop perform calibrations safely and consistently?
- Does the system fit the shop’s available space and workflow?
- Can the investment produce a reasonable return based on the shop’s repair volume?
Once those questions are answered, the decision becomes much clearer. To better understand what goes into system pricing and the key considerations that make up the cost, check out the video below.
Hunter: Alignment-Driven, Expanded into ADAS Calibration
Hunter has long been a major name in wheel alignment and undercar equipment, and that history is reflected in the design of its ADAS systems.
For shops already operating Hunter alignment equipment, adding ADAS calibration may feel like a natural extension. The workflow may be familiar, and the company has a long-standing reputation for precision in mechanical measurement.
That background can be a real advantage, particularly in structured environments where alignment is already a central part of the operation.
However, ADAS calibration is fundamentally different from traditional alignment work. It is not only mechanical. It is also electronic, diagnostic-driven, software-dependent, and highly influenced by changing OEM procedures.
Hunter’s approach may involve several interconnected components, including the alignment system, calibration frame, target storage, monitor, computer, and scan-tool functionality. In some configurations, different manufacturers may be involved in the broader workflow.
That can result in a capable but more segmented process in which alignment, diagnostics, and calibration are connected without always operating as one completely unified platform.
For some shops, that structure works well. For others, it may introduce additional steps, equipment movement, or support coordination.
Autel: Diagnostic-Driven, Built Around Integration
Autel approaches ADAS from a different starting point.
Autel began as a diagnostic technology company focused on scan tools, vehicle electronics, and software-driven repair workflows. As ADAS became a larger part of vehicle repair, Autel added targeting and calibration capabilities directly into its diagnostic platform.
That origin influences how the system operates.
Instead of connecting several separate systems, Autel centers the process around one integrated environment. Vehicle communication, diagnostic scanning, calibration procedures, target positioning, and reporting are managed through the same platform.
For the technician, this can create a more consolidated workflow with fewer handoffs between tools.
Autel systems also use the MaxiSys tablet as the primary interface. Depending on the frame, an additional monitor may be mounted directly to the calibration equipment as a secondary display.
That design becomes especially useful when the technician needs instructions while working somewhere other than directly beside the frame.
For example, when calibrating a long pickup truck, the calibration frame may be positioned at the front of the vehicle while the technician needs to perform a step near the rear. Rather than relying entirely on a fixed monitor several feet away, the technician can bring the tablet to the work area and keep the procedure visible.
Autel also provides Remote Expert capability for situations in which a vehicle requires programming, configuration, or support beyond what is immediately available through the scan tool.
Through that service, technicians can connect with remote programmers who have access to active OEM subscriptions and manufacturer systems.
For many shops, that helps increase real-world vehicle coverage without requiring the business to purchase and maintain every individual OEM tool.
Equipment Mobility: Moving One System Versus Multiple Components
One of the most practical differences between the systems is how easily they can be moved around a working shop.
This matters because calibrations are not always performed in one dedicated bay. Many collision centers and repair facilities use multiple work areas depending on vehicle size, repair flow, alignment-rack availability, lighting, floor conditions, and the type of calibration being performed.
The Hunter Ultimate ADAS configuration requires the movement of both the main calibration frame and a separate cabinet containing the monitor, computer, targets, and related equipment.
When the system must be relocated, both components need to be unplugged and moved across the shop floor. In a working shop, that may mean navigating around:
- Air hoses
- Electrical cords
- Other vehicles
- Toolboxes
- Mats
- Targets
- Active repair areas
Because of the overall size of the equipment, shops may also need more open floor space to maneuver it safely.
By comparison, the Autel IA700, IA900, and IA1000 frames are designed around a more consolidated configuration. The monitor is mounted to the calibration frame, while the tablet serves as the primary technician interface.
That means the shop generally moves one main piece of equipment rather than a frame and a separate viewing cabinet.
For a shop operating across multiple bays, that difference may have a meaningful effect on setup time, technician effort, and daily workflow.
Display and Technician Visibility
Screen size alone does not determine how usable a calibration system is.
The more important question is whether the technician can see the instructions while completing the procedure.
Hunter’s main display is mounted to a separate cabinet associated with the calibration system. A large monitor can provide excellent visibility when the technician is standing near it.
However, visibility may become more difficult when working on longer vehicles or when the technician must move around the vehicle during the calibration process.
The cabinet may not always be easy to reposition because it can interfere with targets, mats, vehicle placement, or the calibration frame itself.
Autel uses the MaxiSys tablet as the primary display and the frame-mounted monitor as a secondary screen.
This allows the technician to carry the procedure around the vehicle rather than continually returning to a stationary display.
For shops focused on technician efficiency, this is not just a convenience. It may reduce unnecessary movement, help technicians stay oriented within the procedure, and make complex calibrations easier to follow.
Space and Layout Requirements
Hunter systems generally fit best in shops with a structured layout, dedicated equipment space, and an alignment-focused workflow.
The equipment is typically larger, more fixed, and designed to operate around a dedicated alignment or calibration area.
That can be a strong fit for:
- High-volume facilities
- Dealership environments
- Shops with dedicated calibration bays
- Operations already standardized around Hunter alignment equipment
Autel offers a wider range of frame configurations, from more portable systems to fully integrated calibration and alignment setups.
That can make Autel easier to adapt to:
- Shared bays
- Smaller facilities
- Multi-use work areas
- Collision shops with changing vehicle flow
- Shops that want to expand gradually
The best choice depends heavily on how much space the shop has and whether the equipment must regularly move between work areas.
Need help finding the right ADAS frame? Use our free ADAS Equipment Advisor.
Additional Target Costs Can Affect the Real Investment
The purchase price of the frame is not the entire equipment investment.
Shops also need to account for targets, target stands, accessories, replacement components, software subscriptions, and future vehicle requirements.
Certain Toyota and Lexus Around View Monitor procedures provide a useful example. Earlier procedures used floor mats placed in specific positions around the vehicle. On some newer models, Toyota and Lexus moved to targets mounted on stands, with at least three targets needed for the procedure.
Autel offers these targets individually at approximately $250 each, while the comparable Hunter setup may involve substantially more expensive targets and specialized heavy stands.
The broader lesson is important regardless of the exact price: a shop should compare the complete cost of ownership, not only the frame price. That means understanding what is included in the package, what additional targets or accessories may be required, and how future software and vehicle coverage could affect the investment.
A system that appears competitive at purchase may become more expensive as new targets, stands, storage, accessories, and service requirements are added.
Our ADAS equipment pricing page explains what goes into pricing, how Autel systems and packages are structured, and the investment ranges shops can expect.
Software Updates: A Critical Part of ADAS Calibration
ADAS technology is continually evolving.
Vehicle systems, OEM procedures, reset functions, model coverage, software logic, and calibration instructions continue to change.
Updates may include:
- Corrections to existing procedures
- New OEM procedures
- New reset functions
- Additional makes and models
- Operating-system improvements
- Faster processing
- New technician guidance
- New features
For a modern calibration shop, timely software updates are essential.
A frame may remain physically capable for many years, but its usefulness depends heavily on whether the software stays current with the vehicles entering the shop.
Autel distributes frequent software updates electronically through its software platform. This allows shops to receive updates over the air without waiting for a technician to physically visit the facility.
Hunter Ultimate ADAS software updates are performed quarterly and require a Hunter service representative to update the system at the shop.
That difference can affect how quickly the equipment receives new procedures, corrections, expanded coverage, and other software improvements. The practical question for any shop is straightforward:
How quickly and easily does each system receive software updates, and what must the shop do to keep the equipment current?

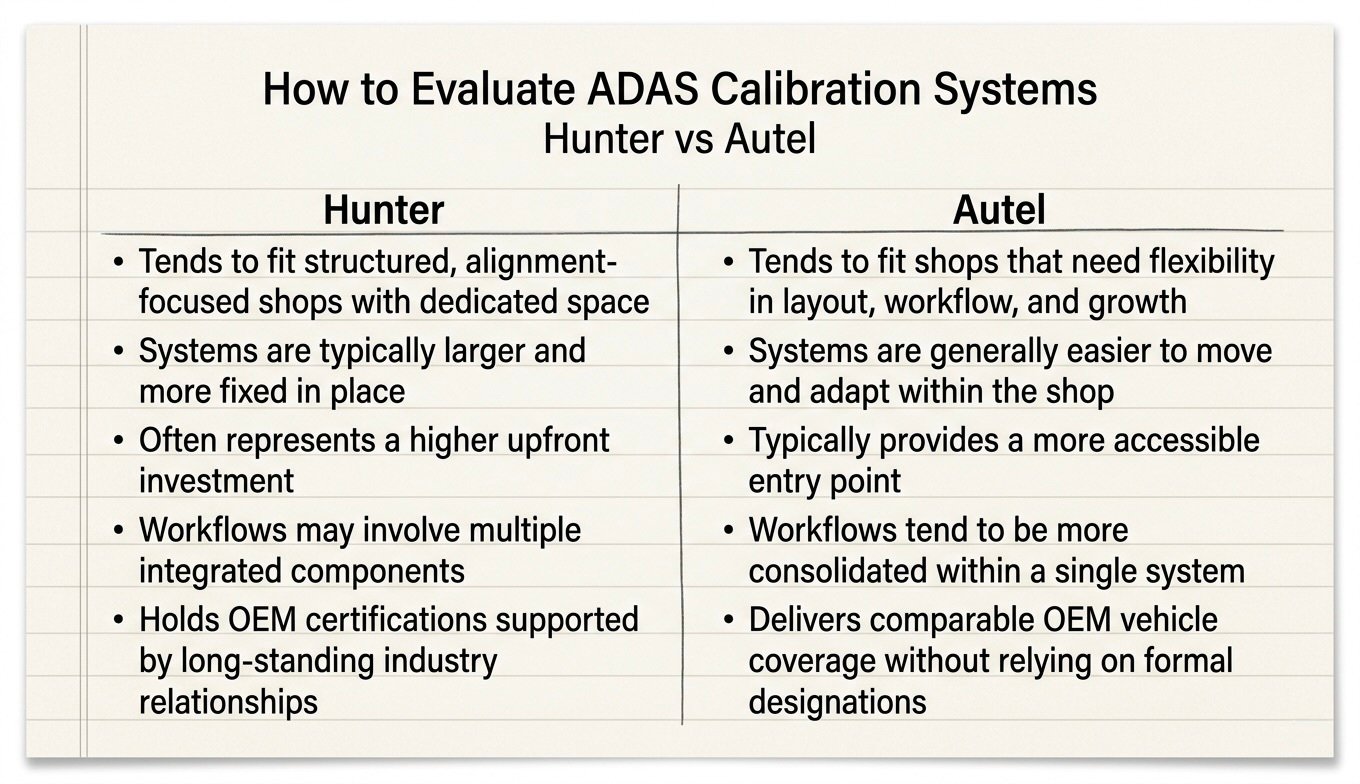

See the ADAS Software Updates Checklist Below.
Support and Troubleshooting
Support becomes especially important when alignment, diagnostics, calibration procedures, software, and equipment are all involved in the same repair.
Hunter has an established field-service model and a broad equipment-support network.
That can be valuable for shops that prefer onsite support and already have relationships with Hunter representatives.
However, when a workflow involves equipment or software from more than one provider, troubleshooting may require coordination across multiple support channels.
Autel’s more integrated diagnostic and calibration platform may simplify that experience because the scan tool, calibration procedures, reporting, and frame are designed to operate together.
Autel’s Remote Expert capability adds another level of support for programming and OEM-access situations.
The better support model depends on the shop.
Some facilities may prefer a field-service relationship. Others may place greater value on software integration, remote access, and having fewer vendors involved.
Vehicle Coverage and OEM Access
Both Hunter and Autel support a broad range of ADAS calibration procedures.
The more useful question is not simply how many vehicles appear on a coverage list.
Shops should ask:
- Does the system cover the makes and models we repair most often?
- How quickly are new procedures added?
- What happens when an OEM tool or subscription is required?
- Can the system support programming or configuration?
- How much work will still need to be sent to a dealership?
- What additional targets or accessories will be needed?
Autel’s diagnostic foundation and Remote Expert service may help shops keep more work in-house when OEM access or module programming is required.
Hunter may be especially attractive to shops that already operate inside a Hunter alignment ecosystem and value established OEM and industry relationships.
Neither point should be evaluated in isolation. Vehicle mix, repair volume, technician experience, and local dealership access all influence the answer.
Turning the Comparison Into a Decision
After reading this article, you now have a clearer understanding of how these two capable systems compare. The differences become even more apparent when you consider how each one fits into the day-to-day operation of a shop. The comparison below highlights the key factors—from space and workflow to investment, support, and long-term growth.
We’re Here to Help and Guide You
Hunter and Autel are both capable systems. This is not a question of one system being able to calibrate and the other being unable to do so.
The real difference is how each system fits into the shop—operationally, physically, technically, and financially.
There is a great deal to consider when evaluating ADAS calibration equipment, and specifications alone do not always reveal what the system will be like to use every day.
A consultative call can help. Together, we can determine whether bringing ADAS calibration in-house makes sense and which setup gives your team the best opportunity to perform the work safely, efficiently, and profitably.
